LES Simulations from ERA-Interim Reanalysis

I ran the UCLA large eddy simulation (LES) model to generate a wide variety of marine boundary layer cloud structure for developing cloud remote sensing methods using 3D radiative transfer. Bjorn Stevens, the author of the UCLA LES model, helped me with running the model. I initialed the LES model with atmospheric profiles from random columns at specific times from the ECMWF ERA-Interim reanalysis.

Description of LES model:

UCLA LES version 2.0; model developed by Bjorn Stevens and distributed here.
My modifications: read in the assumed constant large scale forcing (vertical velocity and temperature and moisture advection profiles) from a file; modified the Monte Carlo spectral integration radiation scheme to allow calling the radiation code for a column with a specified probability to speed up the calculations; added a netcdf LWC output file.

Description of the simulation procedure:

Data source: ERA-Interim reanalysis; 1.5^o x 25 mb x 6 hrs resolution; surface and pressure level parameters from 600 to 1000 mb.

Location: North east Pacific: 0N to 45N, 150W to 105W, oceanic columns

Times: 18Z on 2007-05-21, 2007-06-21, 2007-07-22, 2007-08-22, 2007-09-23.

ERA column selection:

CAPE: 0 to 500 J/kg
BL max cloud fraction: 0.10 to 1.00
Mid-layer max cloud fraction: 0.0 to 0.01

Simulation time: 8:00 to 14:00 local time

Horizontal grid: 160x160 at 50 m spacing

Domain top: 500 m above first ERA level with potential temperature more than 10 K above that at 1000 mb.

Vertical grid: Variable grid; 40 m default spacing; 20 m spacing at surface; 10 m spacing around imposed jumps or 20 m spacing around the max dtheta/dz ERA layer if dtheta/dz>10 K/km; 400 m wide high-resolution region (75% above jump) for imposed jumps, otherwise 250 m wide region centered on layer.

Vertical jump in sounding: 10 m wide jump imposed at ERA boundary layer height if the two ERA layer (50 mb) potential temperature difference is > 5 K and the max BL cloud fraction > 0.80.

Large scale forcing: zero temperature and total water advection; large scale vertical velocity is from ERA.

Surface fluxes: LES water surface parameterization

Sea surface temperature: Initial SST set ERA SST; SST changes linearly with time according to ERA SST gradient and mean wind speed for a Lagragian-type simulation.

Microphysics: fixed cloud droplet concentration from random CCN with an exponential distribution between 40 and 400 cm^-3; two-moment drizzle/rain bulk microsphysics scheme (see Stevens and Seifert 2008).

Radiation: Fu/McISA independent column radiation code (Pincus and Stevens, 2009) , randomly sampled 1/3 of the time for speed up, for longwave and shortwave radiative transfer.
Subgrid scale mixing: Smagorinsky closure; turned off SGS mixing for scalars.

Click on image for a web page with graphs for each set of five simulations.
At the end of each web page below there are links to netcdf files with the 3D fields of liquid water content. These files may be read with les2lwc.f90 .

Simulations: era0521nh1 to era0521nh5

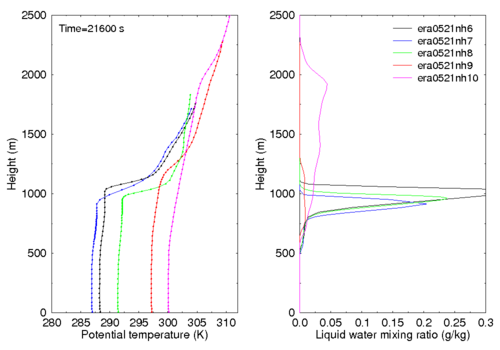

Simulations: era0521nh6 to era0521nh10

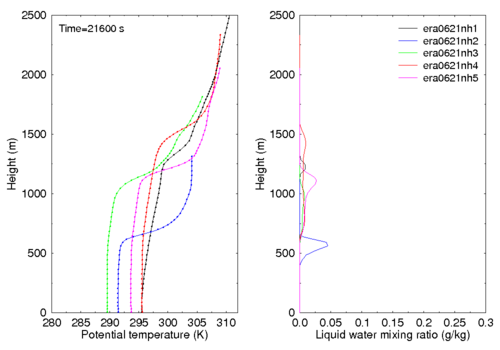

Simulations: era0621nh1 to era0621nh5

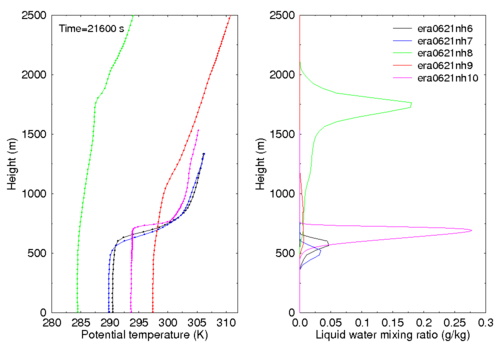

Simulations: era0621nh6 to era0621nh10

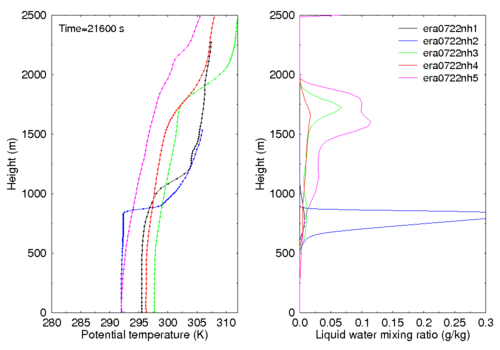

Simulations: era0722nh1 to era0722nh5

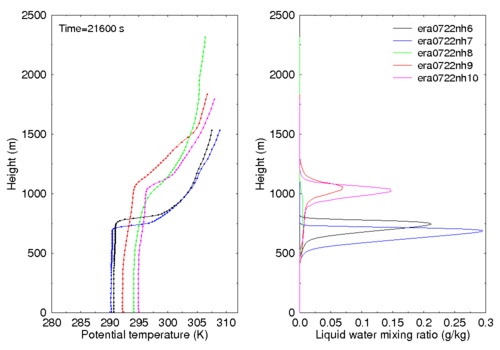

Simulations: era0722nh6 to era0722nh10

Simulations: era0822nh1 to era0822nh5

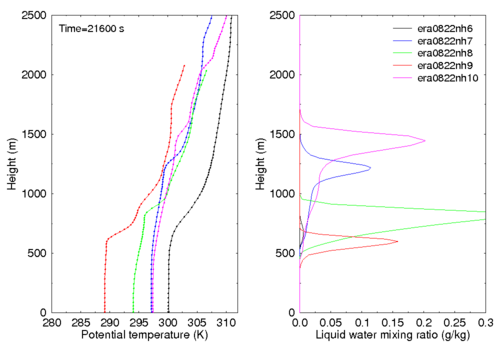

Simulations: era0822nh6 to era0822nh10

Simulations: era0923nh1 to era0923nh5

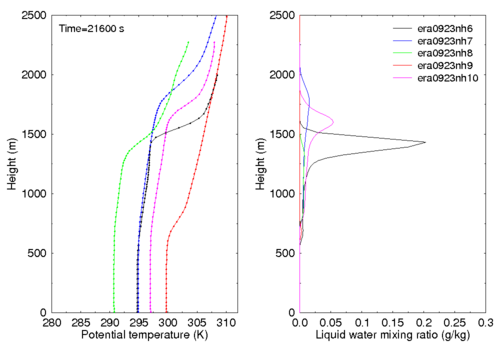

Simulations: era0923nh6 to era0923nh10

Simulations: era0521nh11 to era0521nh15

Simulations: era0521nh16 to era0521nh20

Simulations: era0621nh11 to era0621nh15

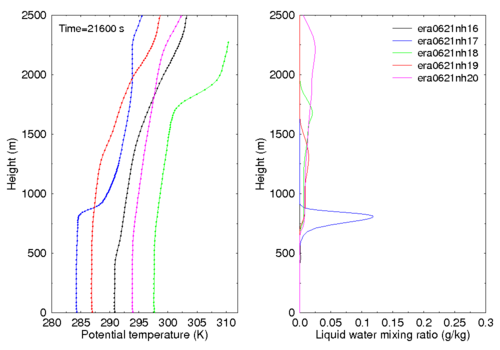

Simulations: era0621nh16 to era0621nh20

Simulations: era0722nh11 to era0722nh15

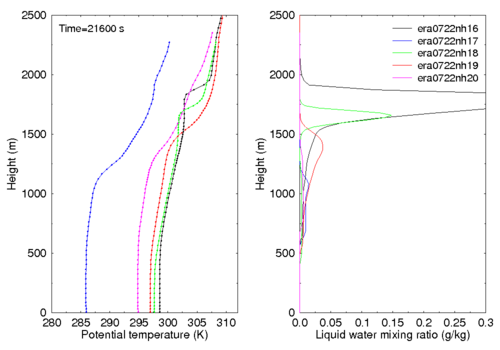

Simulations: era0722nh16 to era0722nh20

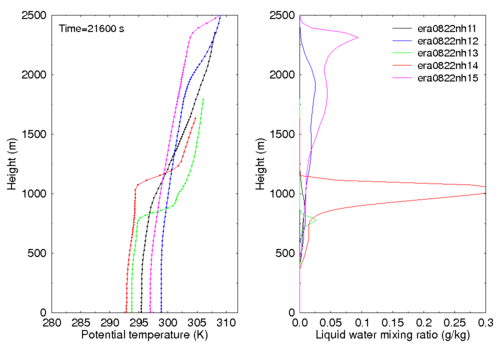

Simulations: era0822nh11 to era0822nh15

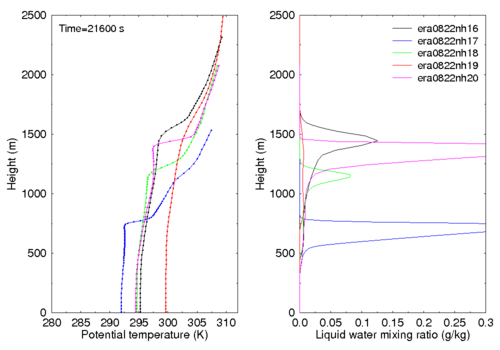

Simulations: era0822nh16 to era0822nh20

Simulations: era0923nh11 to era0923nh15

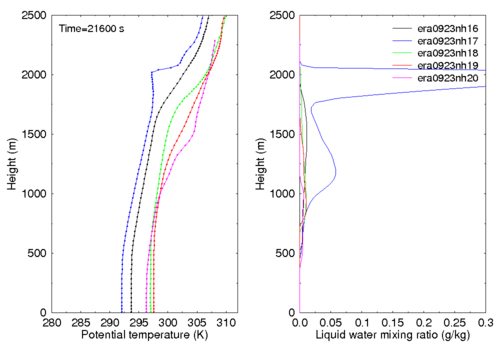

Simulations: era0923nh16 to era0923nh20

Simulations: era0521nh21 to era0521nh25

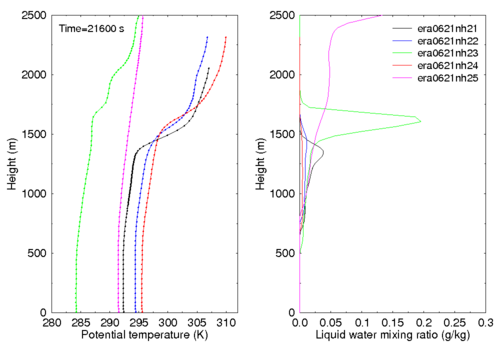

Simulations: era0621nh21 to era0621nh25

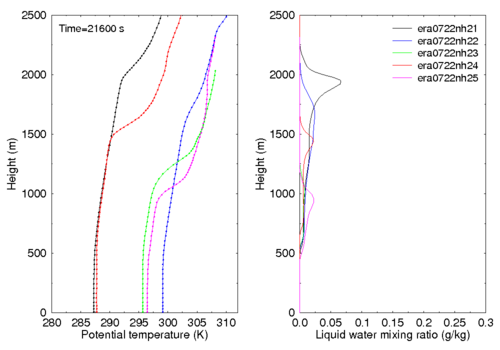

Simulations: era0722nh21 to era0722nh25

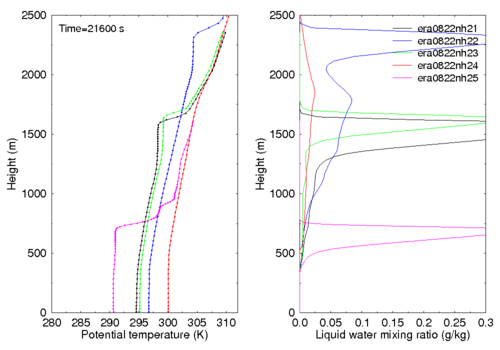

Simulations: era0822nh21 to era0822nh25

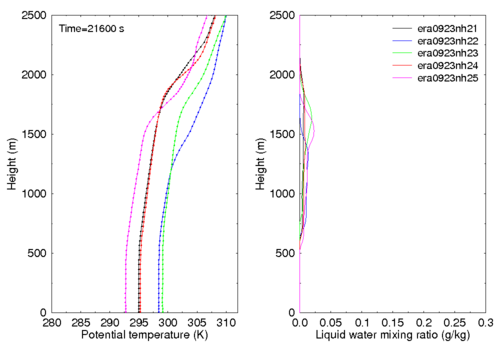

Simulations: era0923nh21 to era0923nh25

Simulations: era0521nh26 to era0521nh30

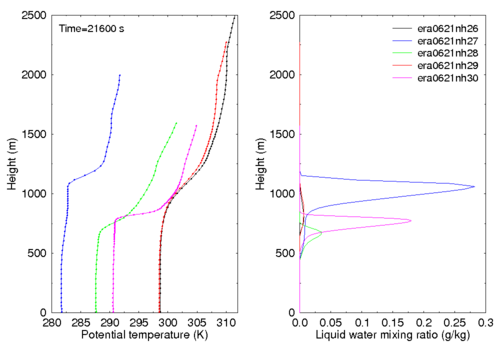

Simulations: era0621nh26 to era0621nh30

Simulations: era0722nh26 to era0722nh30

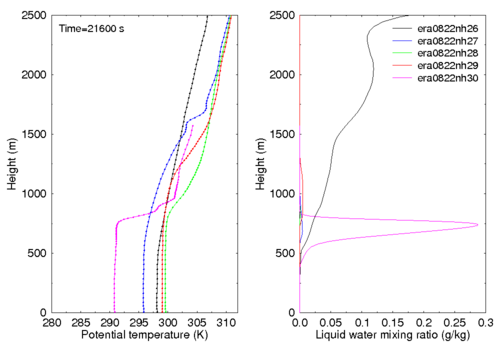

Simulations: era0822nh26 to era0822nh30

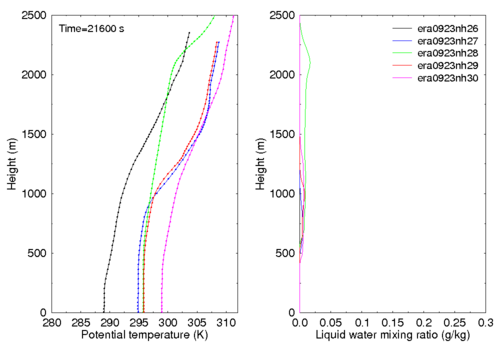

Simulations: era0923nh26 to era0923nh30

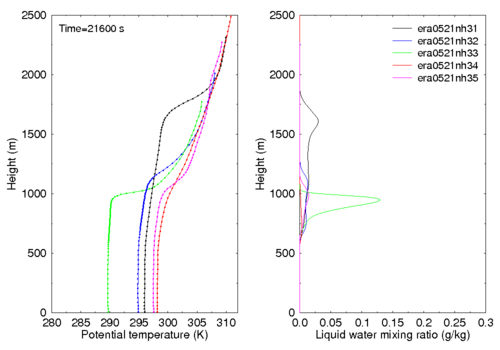

Simulations: era0521nh31 to era0521nh35

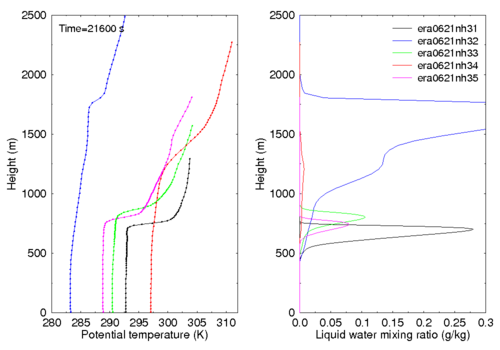

Simulations: era0621nh31 to era0621nh35

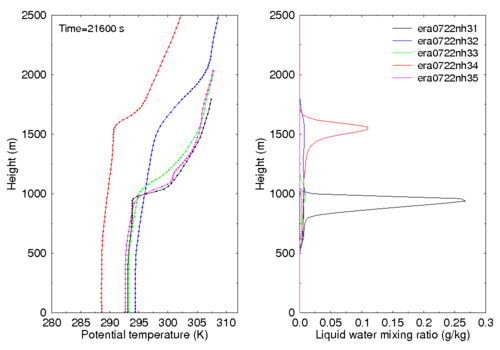

Simulations: era0722nh31 to era0722nh35

Simulations: era0822nh31 to era0822nh35

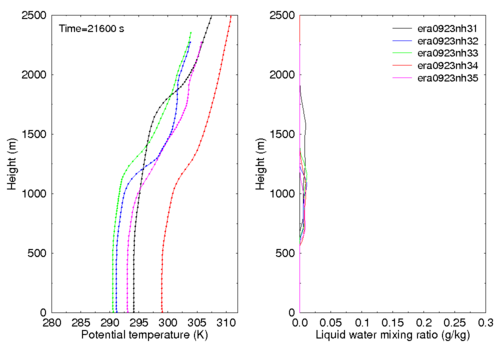

Simulations: era0923nh31 to era0923nh35

Simulations: era0521nh36 to era0521nh40

Simulations: era0621nh36 to era0621nh40

Simulations: era0722nh36 to era0722nh40

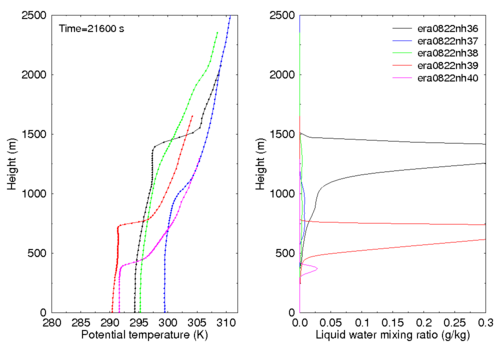

Simulations: era0822nh36 to era0822nh40

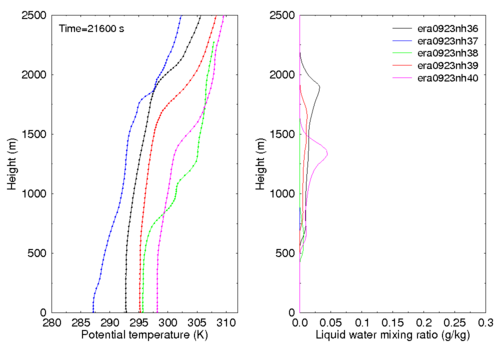

Simulations: era0923nh36 to era0923nh40
